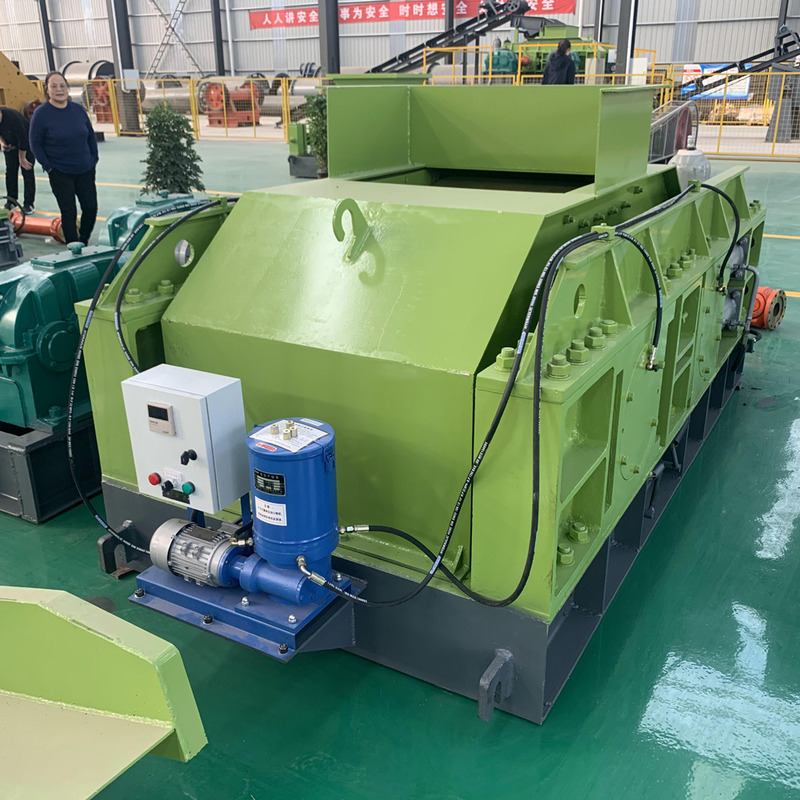

The hydraulic rollers crusher is a new type product by our company-HUAHONG MACHINERY, on basis of years of experience on spring rollers crusher. This machine is widely used for secondary and fine crushing in the industry of mining, building materials, chemical industry, metallurgy and so on. It can crush materials in middle hardness such as rocks, ore, coke, lump coal, slag, mineral slag, cement clinker, fireproof materials, and so on.
1.Drived by electromotor via reducer, two toothroller rotate inward synchronously in opposite direction;
2.Material dropping from the inlet to crushing chamber;
3.Classified by the tooth roller with tooth;
4.The massive materials would be crushed,cut, and then discharged in the discharging opening.
Uniform aggregate particle size
· Good Shape
· Low Dust at Site
· Low Noise
· Easy Maintenance
· Durable & Reliable
· Good Capacity
The roll crusher applies to the cement, chemical, electric power, mining, metallurgy, building materials, refractory materials, coal and other industries of thick, brittle block material intermediate crushing, it into the grain-size, discharging granularity is adjustable, can fight pressure strength of 160 mpa or less materials are broken. Especially in the coal industry, the use of native raw coal fragmentation, as long as after iron, removing impurity, without gangue removal, Application materials: limestone, pebble, coal, dolomite, granite, basalt, iron ore, silica sand etc.
Technical parameter
Smooth roller crusher | ||||||||||
model | Feed size mm | capacity t/h | out put size mm | motor pwoer kw | weight kg | |||||
2PG400*250 | less 350 | 10-20 | 15-125 | 11 | 2800 | |||||
2PG500*400 | less 350 | 20-30 | 15-125 | 15 | 3600 | |||||
2PG610*400 | less 400 | 30-50 | 15-125 | 22 | 4500 | |||||
2PG610*800 | less 500 | 60-80 | 15-150 | 30 | 7200 | |||||
2PG750*500 | less 500 | 80-100 | 15-150 | 37 | 7800 |
